CENSICO Premium Microscopes & Metallographic Testing Equipments

Medical Microscope

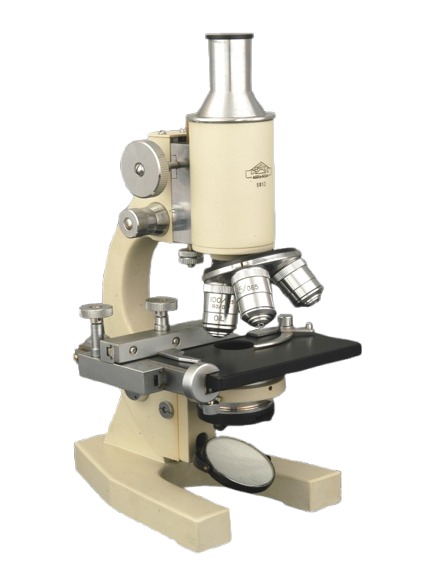

MONOCULAR PATHOLOGICAL MICROSCOPE
CENSICO MAKE MODEL E-O-A

1. Magnification: 50x – 1000x / 1500x.
2. Coarse focusing arrangement effected by Rack and Pinion, with fine focusing adjustment from both sides.
3. Quadruple / Triple Revolving Ball Bearing Nosepiece.
4. Attachable Graduated Mechanical Stage.
5. 2-Lens Condenser with Iris Diaphragm, N.A. 1.20.
6. Optics: 3 Achromatic Objectives – 10x, 40x, and 100x Oil Immersion.
7. 2 Huyghenian Eyepieces – 10x and 5x/15x.

---

ADVANCED TYPE (PATHOLOGICAL) MICROSCOPE
CENSICO MAKE MODEL E-O-B-X

1. Magnification: 50x – 1000x / 1500x.
2. Coarse focusing arrangement effected by Rack and Pinion, with fine focusing adjustment from both sides.
3. Quadruple / Triple Revolving Ball Bearing Nosepiece.
4. Attachable Graduated Mechanical Stage.
5. 2-Lens Condenser with Iris Diaphragm, N.A. 1.20.
6. Optics: Superior Parfocal and Precentered System.
7. 2 Achromatic Objectives – 10x and 40x (Own Make).
8. 1 Oil Immersion Objective – 100x Spring Loaded (Original Meopta Czech).
9. 2 Huyghenian Eyepieces – 10x and 5x/15x.

Binocular Microscope

BINOCULAR MICROSCOPE WITH COAXIAL COARSE AND FINE MOTION
(IMPORTED COMPONENTS) CENSICO MAKE MODEL XSG-109L-B

1. Binocular Research Microscope.
2. Magnification: 40x to 1000x / 1600x.
3. Coaxial coarse and fine adjustment with vertical coaxial movement.
4. Mechanical stage with ball bearing motion.
5. Built-in illumination with 6V / 20W Halogen Lamp.
6. Ball bearing mounted quadruple revolving nosepiece.
7. Achromatic Objectives: 4x, 10x, 40xs, and 100xs Oil.
8. Paired Eyepiece WF 10x.

---

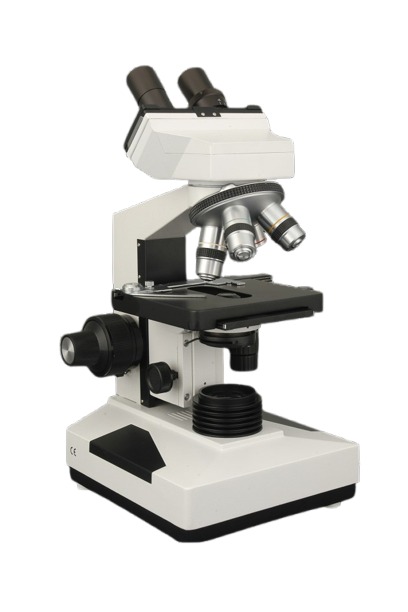

BINOCULAR RESEARCH (PATHOLOGICAL) MICROSCOPE
CENSICO MAKE MODEL BN-O-B-CXL

1. Binocular Research / Medical / Pathological Microscope.
2. Coarse focusing arrangement effected by Rack and Pinion, with fine focusing adjustment from both sides.
3. Quadruple Revolving Ball Bearing Type Nosepiece.
4. Two-Lens Condenser with Iris Diaphragm and Swing-Out Filter Holder.
5. Large Stage Size: 130 mm × 130 mm with Attachable Mechanical Stage.
6. Superior, Parfocal and Precentered Optics.
7. Three Achromatic Objectives: 5x, 10x, and 45x/40x (Own Make).
8. One Oil Immersion Objective: 100x Spring Loaded (Original Imported Meopta Czech).
9. Paired Huyghenian Eyepieces: 10x and 15x / 5x.
10. Built-in Halogen Lamp (6V × 20W) Illuminator with Variable Transformer (3–6 Volts).

Trinocular Microscope

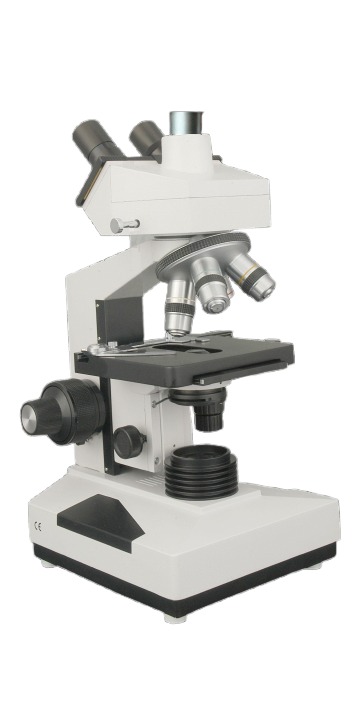

TRINOCULAR RESEARCH MICROSCOPE WITH COAXIAL COARSE AND FINE MOTION
(IMPORTED COMPONENTS) MODEL XSG-109L-T

1. Trinocular Research Microscope.
2. Magnification: 40x to 1000x / 1600x.
3. Coaxial Coarse and Fine Adjustment.
4. Vertical Coaxial Mechanical Stage.
5. Built-in Illumination with 6V / 20W Halogen Lamp.
6. Ball Bearing Mounted Quadruple Revolving Nosepiece.
7. Achromatic Objectives: 4x, 10x, 40xs, and 100xs Oil.
8. Paired Eyepiece WF 10x.
9. Trinocular Head with Adjustable Vertical Tube.

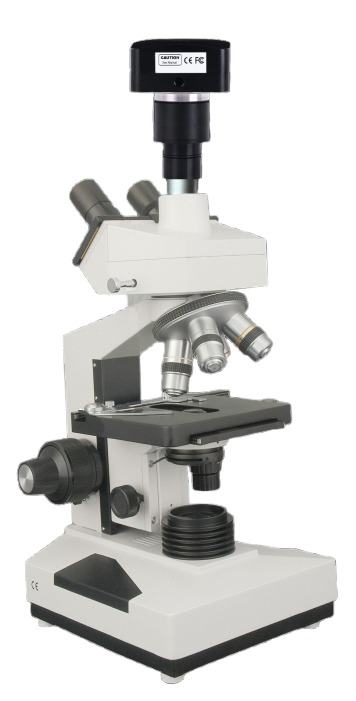

Trinocular Microscope with camera

TRINOCULAR RESEARCH MICROSCOPE WITH COAXIAL COARSE AND FINE MOTION
(IMPORTED COMPONENTS) MODEL XSG-109L-T WITH DIGITAL CAMERA & REDUCTION LENS

1. Trinocular Research Microscope.
2. Magnification: 40x to 1000x / 1600x.
3. Coaxial Coarse and Fine Adjustment.
4. Vertical Coaxial Mechanical Stage.
5. Built-in Illumination with 6V / 20W Halogen Lamp.
6. Ball Bearing Mounted Quadruple Revolving Nosepiece.
7. Achromatic Objectives: 4x, 10x, 40xs, and 100xs Oil.
8. Paired Eyepiece WF 10x.
9. Trinocular Head with Adjustable Vertical Tube.
10. 5 MP / 18 MP Digital Camera (USB 2.0 / USB 3.0) with Reduction Lens.

Phase Contrast & Dark field Microscope

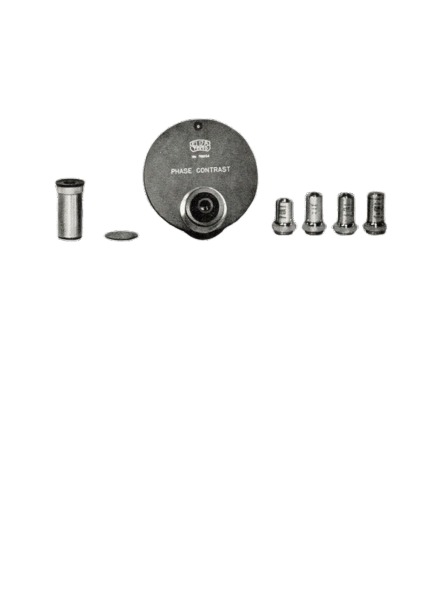

BINOCULAR / TRINOCULAR PHASE CONTRAST MICROSCOPE
CENSICO MAKE MODEL BN-II-PH-CXL / TN-II-PH-CXL

1. Suitable for Microscope Models XSG-109L-B and XSG-109L-T.
2. Coarse focusing arrangement effected by Rack and Pinion, with fine focusing adjustment from both sides and graduated right drum.
3. Ball Bearing Mounted Quadruple Revolving Nosepiece.
4. Two-Lens Condenser with Iris Diaphragm and Swing-Out Filter Holder, N.A. 1.30.
5. Large Stage: 130 mm × 130 mm with Attachable Mechanical Stage.
6. Built-in Halogen Lamp 6V × 20W in sturdy base.
7. Phase Contrast Equipment (ELIZA Japan) consisting of Phase Contrast Auxiliary Microscope Eyepiece.
8. Four Phase Contrast Achromatic Objectives:
   • PH 10x / N.A. 0.30
   • PH 20x / N.A. 0.45
   • PH 40x or 45x / N.A. 0.65
   • PH 100x Oil Immersion / N.A. 1.25d
9. One Phase Condenser with 2 Paired Huyghenian Eyepieces 10x and 15x.
10. Supplied with Dark Medium Phase Contrast Equipment.

X

Biological Microscope

The Biological Microscope are special designed for education of students for study in Biology, Microbiology, Anatomy departments of Universities, Medical Colleges and Hospitals. Provided with Achromatic Objectives 4x/5x, 10x, 40x & 100x Oil and eyepieces 10x. The magnification range is 20x to 1500x with different objective and eyepieces. It is available in three models that are Monocular Biological Microscope, Binocular Biological Microscope and Trinocular Biological Microscope with digital camera. We are known as a leading manufacturer and exporter of biological microscope.
