CENSICO Premium Microscopes & Metallographic Testing Equipments

Stereo Zoom Microscope

Stereo Zoom Binocular Microscope

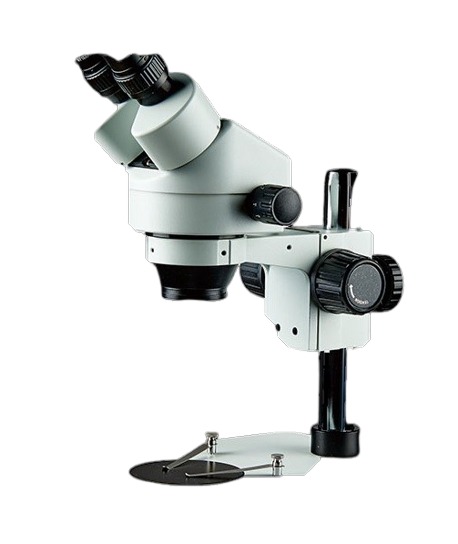

Stereo Zoom Binocular Microscope SZM-B

STEREO ZOOM BINOCULAR MICROSCOPE / PALEONTOLOGICAL MICROSCOPE
CENSICO MAKE MODEL SZM-B (WITH IMPORTED COMPONENTS)

  1. Stereo Zoom Binocular Microscope.
  2. Total Magnification: 7x – 45x (Standard) with Twin Zooming Objective 0.7x – 4.5x (Zooming Ratio 1:6.5).
  3. One pair of High Eyepoint Wide Field Eyepieces WF10x/20 (one eyepiece with cross-scale graticule).
  4. Working Distance: 100 mm.
  5. Imported Pillar Base Stand.

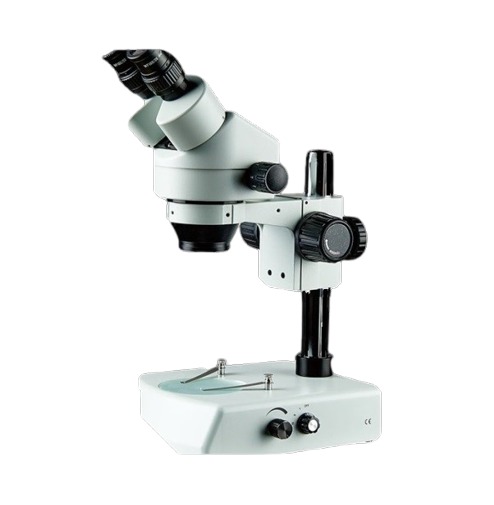

Stereo Zoom Binocular Microscope SZM-B-LED

STEREO ZOOM BINOCULAR MICROSCOPE
CENSICO MAKE MODEL SZM-B-LED (WITH IMPORTED COMPONENTS)

  1. Stereo Zoom Binocular Microscope.
  2. Total Magnification: 7x – 45x (Standard) with Twin Zooming System.
  3. Objective: 0.7x – 4.5x (Zooming Ratio 1:6.5).
  4. One pair of High Eyepoint Wide Field Eyepieces WF10x/20.
  5. Working Distance: 100 mm.
  6. Magnification Range: 7x to 45x.
  7. Optical System: Imported Stereo Zoom Optical System with Zoom Objectives 0.7x – 4.5x, completely parfocal.
  8. Eyepieces: Imported Paired Widefield Eyepieces WF10x/20.
  9. Illumination System: LED transmitted light integrated in the stand base with ON/OFF switch.

Stereo Zoom Trinocular Microscope

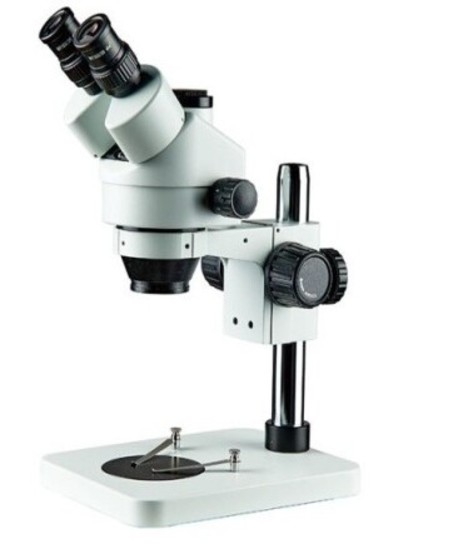

Stereo Zoom Trinocular Microscope SZM-T

STEREO ZOOM TRINOCULAR MICROSCOPE / PALEONTOLOGICAL MICROSCOPE
CENSICO MAKE MODEL SZM-T (WITH IMPORTED COMPONENTS)

Specification:

  1. A zoom stereo trinocular microscope having vertical tube for microphotographic camera equipment or CCTV projection.
  2. Total magnification: 7x – 45x.
  3. One pair high eyepoint wide field eyepieces WF10x.
  4. Working distance: 100 mm.
  5. Imported pillar base stand.
Stereo Zoom Trinocular Microscope SZM-T-LED

STEREO ZOOM TRINOCULAR MICROSCOPE
CENSICO MAKE MODEL SZM-T-LED (WITH IMPORTED COMPONENTS)

Specification:

  1. A stereo zoom trinocular microscope.
  2. Total magnification: 7x – 45x (standard).
  3. Twin zooming objective 0.7x – 4.5x (zoom ratio 1:6.5).
  4. One pair high eyepoint wide field eyepieces WF10x / 20.
  5. Working distance: 100 mm.
  6. LED transmitted light integrated in the stand (maintenance free, very long life).

Stereo Zoom Trinocular Microscope with camera

Stereo Zoom Trinocular Microscope SZM-T-DCAM

STEREO ZOOM TRINOCULAR MICROSCOPE / PALEONTOLOGICAL MICROSCOPE
CENSICO MAKE MODEL SZM-T-DCAM (WITH IMPORTED COMPONENTS)

Specification:

  1. A zoom stereo trinocular microscope having vertical tube for microphotographic camera equipment or CCTV projection.
  2. Total magnification: 7x – 45x.
  3. One pair high eyepoint wide field eyepieces WF10x.
  4. Working distance: 100 mm.
  5. Imported pillar base stand.

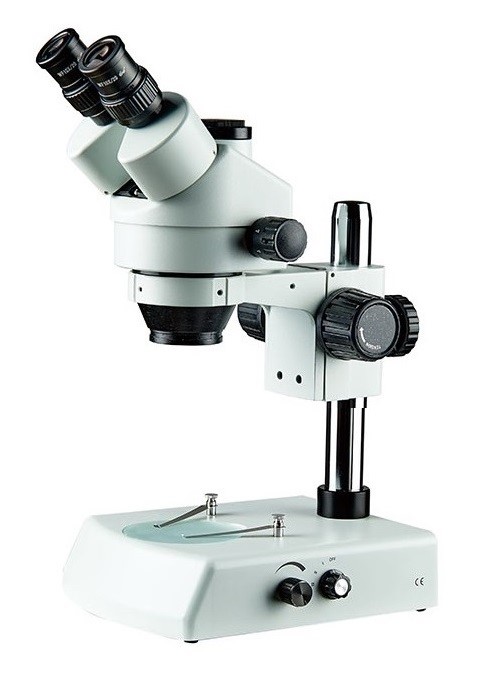

Stereo Zoom Trinocular Microscope SZM-T-LED-DCAM

STEREO ZOOM TRINOCULAR MICROSCOPE
CENSICO MAKE MODEL SZM-T-LED-DCAM (WITH IMPORTED COMPONENTS)

Specification:

  1. A stereo zoom trinocular microscope.
  2. Total magnification: 7x – 45x (standard).
  3. Twin zooming objective 0.7x – 4.5x (zoom ratio 1:6.5).
  4. One pair high eyepoint wide field eyepieces WF10x / 20.
  5. Working distance: 100 mm.
  6. LED transmitted light integrated in the stand (maintenance free, very long life).
Microscope Digital Camera USB 2.0 5MP

MICROSCOPE DIGITAL CAMERA
USB 2.0 – 5MP

Specification:

  1. Image Sensor: 5 Megapixel
  2. Sensor: 1/2" CMOS
  3. Pixel Size: 3.2 µm
  4. Maximum Resolution: 2592 × 1944
  5. Image Output: USB 2.0
  6. Power Supply: 5V (USB)

Computer Compatibility: Windows XP / Vista / 7 / 8 / 10 (32/64 bit), Mac OSX, Linux

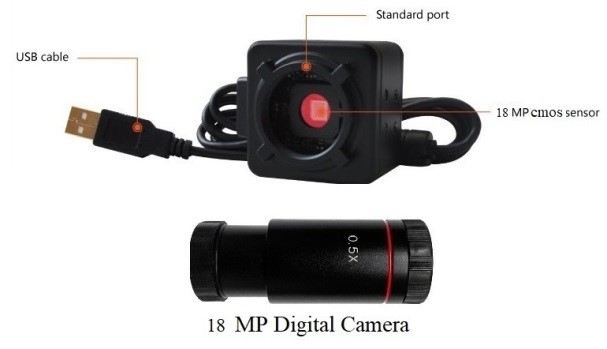

Microscope Digital Camera USB 3.0 18MP

MICROSCOPE DIGITAL CAMERA
USB 3.0 – 18MP

Specification:

  1. Image Sensor: 18 Megapixel
  2. Sensor: 1/2.3" CMOS
  3. Pixel Size: 1.25 × 1.25 µm
  4. Maximum Resolution: 4912 × 3684
  5. Image Output: USB 3.0
  6. Power Supply: 18V (USB)

Computer Compatibility: Windows XP / Vista / 7 / 8 / 10 / 11 (32/64 bit), Mac OSX, Linux

Accessories for Stereo Zoom Microscope

LED Ring Light Illuminator

LED RING LIGHT ILLUMINATOR (INCIDENT RAY)

LED Ring Light Illuminator with 54 / 60 LEDs for Stereo & Stereo Zoom Microscope.

Fluorescent Ring Illuminator

FLUORESCENT RING ILLUMINATOR

Fluorescent Ring Illuminator for Stereo & Stereo Zoom Microscopes.

Spare Fluorescent Ring

SPARE FLUORESCENT RING

Spare Fluorescent Ring.

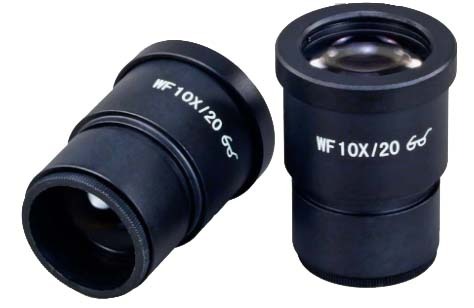

Paired Wide Field Eyepieces

PAIRED WIDE FIELD EYEPIECES

Paired Wide Field Eyepieces WF 20X and one Auxiliary Objective 2X.

Stereo Zoom Microscope

Stereo Zoom Microscope are suitable for study / inspection of three dimensional large objects like PCBs & precision components. The objectives magnification can be changed continuously without any steps. With paired widefield eyepieces WF 10x, the total magnification can be varied from 7x to 60x. With additional and optional accessories i.e. auxiliary objectives and widefield eyepieces, the magnification range can be varied from 5x to 240x.
