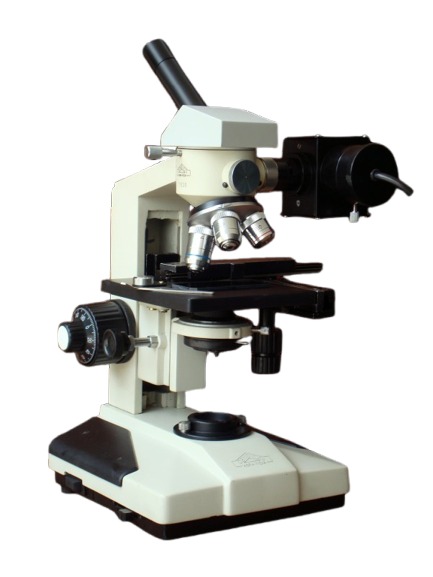

INCLINED METALLURGICAL MICROSCOPE WITH COAXIAL COARSE AND FINE MOTION
CENSICO MAKE MODEL MM-XI-CXL

1. Magnifications: 50x to 600x (up to 1500x).
2. Inclined monocular tube, convenient for prolonged observations.
3. Coaxial coarse and fine focusing adjustments effected from both sides.
4. Mechanical stage with vernier graduation.
5. Built-in low voltage epi-illuminator for incident ray microscopy with imported iris diaphragm.
6. OPTICS: Own make superior, parfocal and precentered optics, three achromatic objectives (5x, 10x and 40x) corrected for incident light microscopy, one Widefield eyepiece WF10x and one Huyghenian eyepiece 15x.

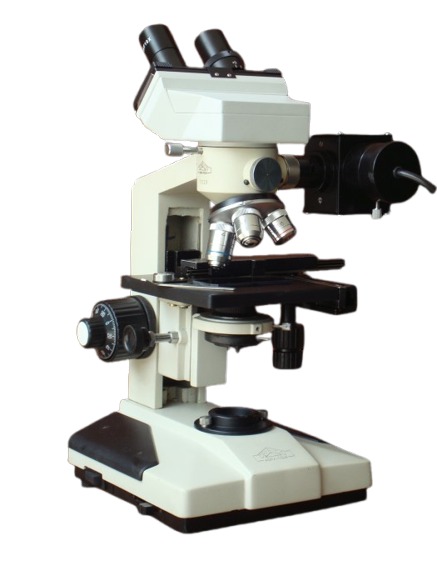

BINOCULAR METALLURGICAL MICROSCOPE WITH COAXIAL COARSE AND FINE MOTION
CENSICO MAKE MODEL MM-IX-CXL

1. Magnifications: 50x to 600x (up to 1500x).
2. Inclined binocular head, convenient for prolonged observations.
3. Coaxial coarse and fine focusing adjustments effected from both sides.
4. Attachable mechanical stage.
5. Built-in low voltage halogen lamp illuminator (6V–20W) for incident ray microscopy with imported iris diaphragm.
6. OPTICS: Own make superior, parfocal and precentered optics, three achromatic objectives (4x/5x, 10x and 40x) and two paired widefield eyepieces WF10x & WF15x.

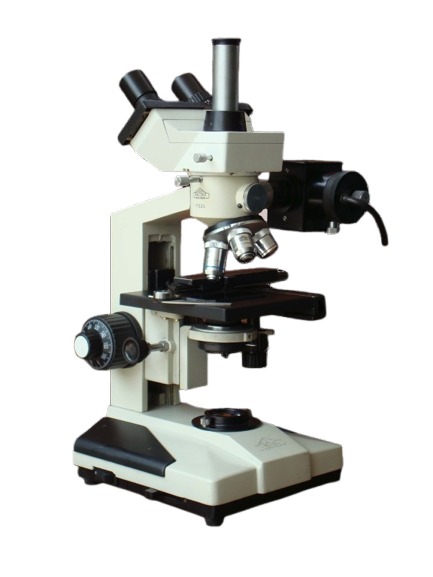

TRINOCULAR METALLURGICAL MICROSCOPE
CENSICO MAKE MODEL MM-XVII-CXL

1. Magnifications: 50x to 600x (up to 1500x).
2. Inclined trinocular head, convenient for prolonged observations, microphotography & image analysis.
3. Coaxial coarse and fine focusing adjustments effected from both sides.
4. Attachable mechanical stage.
5. Built-in low voltage halogen lamp illuminator (6V–20W) for incident ray microscopy with imported iris diaphragm.
6. OPTICS: Own make superior, parfocal and precentered optics, three achromatic objectives (4x/5x, 10x and 40x) and two paired widefield eyepieces WF10x & WF15x.

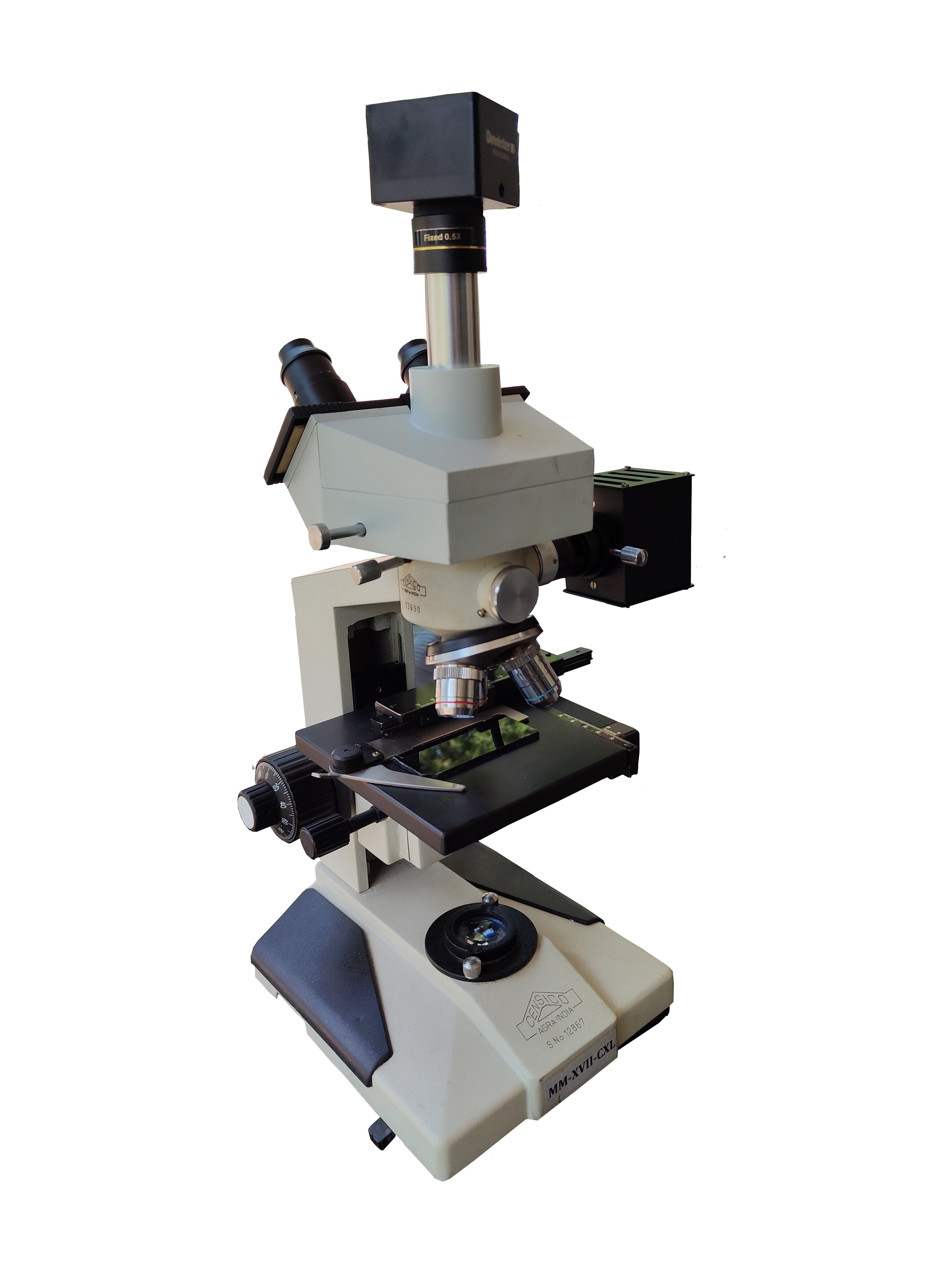

TRINOCULAR METALLURGICAL MICROSCOPE
CENSICO MAKE MODEL MM-XVII-CXL-DCAM

1. Magnifications: 50x to 600x (up to 1500x).
2. Inclined trinocular head, convenient for prolonged observations, microphotography & image analysis.
3. Coaxial coarse and fine focusing adjustments effected from both sides.
4. Attachable mechanical stage.
5. Built-in low voltage halogen lamp illuminator (6V–20W) for incident ray microscopy with imported iris diaphragm.
6. OPTICS: Own make superior, parfocal and precentered optics, three achromatic objectives (4x/5x, 10x and 40x) and two paired widefield eyepieces WF10x & WF15x.

---

DIGITAL CAMERA SPECIFICATION
MODEL MM-XVII-CXL-DCAM

1. Microscope digital camera (USB 2.0) with 5 Megapixel resolution.
2. Includes imaging software and reduction lens.

Hardware Specifications

1. Image Sensor: 5 MP
2. Sensor Type: 1/2" CMOS
3. Pixel Size: 3.2 µm
4. Maximum Resolution: 2592 × 1944
5. Image Output: USB 2.0
6. Power Supply: 5V (via USB)

Computer Compatibility

1. Windows XP / Vista / 7 / 8 / 10 (32 & 64 bit)
2. Mac OSX / Linux supported

TRINOCULAR METALLURGICAL MICROSCOPE WITH DIGITAL CAMERA ACCESSORIES

Model	Specification

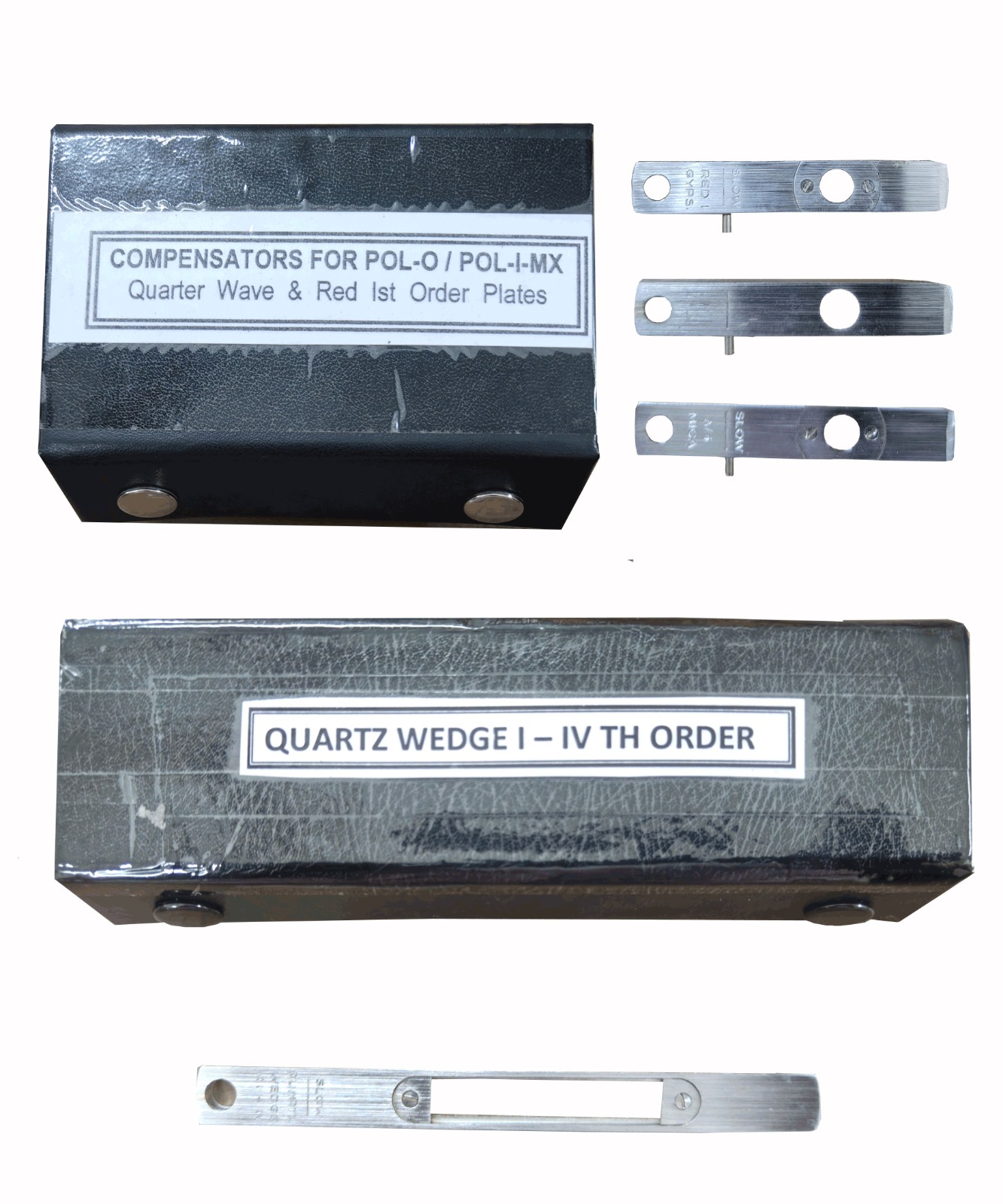

Compensators	Mica Quarter Wave & Gypsum Red First Order Plates, imported make, mounted in CENSICO metallic mounts.
Quartz Wedge	First to Fourth Order Quartz Wedge, imported, mounted in CENSICO metallic mounts, size 12 mm × 4 mm.
Objectives	5x centerable objective for CENSICO Polarising Microscopes. 10x centerable objective for CENSICO Polarising Microscopes. 40x centerable objective for CENSICO Polarising Microscopes. 100x Oil Immersion Objective (Hertel & Reuss, German make).
Bulbs	Imported Halogen Lamp 6V / 20W. Imported Halogen Lamp 12V / 50W. Imported Halogen Lamp 6V / 20W. Japanese Hosobuchi bulb 6V × 30/33W, two-pin type with ribbon filament.
Eyepieces	One pair imported widefield eyepieces WF10x. One pair imported widefield eyepieces WF15x. Measuring eyepiece 10x (Filar micrometer eyepiece), imported.
Stage & Eyepiece Micrometers	Stage micrometer 1 mm × 100 divisions (Japan make). Micrometer disc scale 10 mm × 100 divisions. Graph micrometer disc (100 or 400 square divisions, Japan make).
Mechanical Stage for Polarising Microscopes	Mechanical stage for CENSICO make polarising binocular and trinocular microscopes.
