Polarizing Microscope

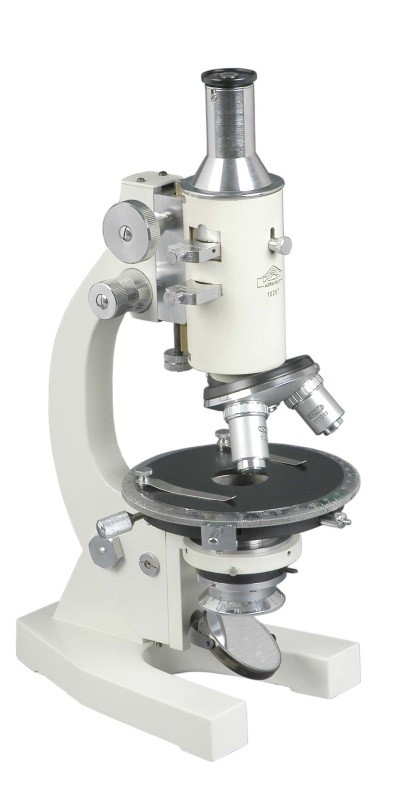

Student Polarising Microscope

Student Polarising Microscope

Polarising (Petrological) Microscope 'CENSICO' make model POL-I-MX

  1. A microscope for visualising objects (thin sections) in transmitted polarised light. Illumination by plano-concave mirror.
  2. Coarse focusing adjustment effected by rack and pinion. Fine focusing adjustment provided from both sides.
  3. Triple/Quadruple revolving ball-bearing type self-centered nosepiece.
  4. Circular centering rotatable stage with degree calibration.
  5. Two-lens aplanatic Abbe condenser.
  6. Rotatable polariser mount having 15° calibration.
  7. The Microscope is also equipped with a Bertrand lens which can be swung in and out.
  8. The polarising filters are imported and of high grade and are guaranteed for five years for good performance.
  9. OPTICS: Three objectives (self-centered and strain-free) – 5x, 10x & 40x, own make (Superior).
  10. Two Huygenian eyepieces – 10x (Cross Hair) & 15x.
  11. Plywood cabinet with lock and key.

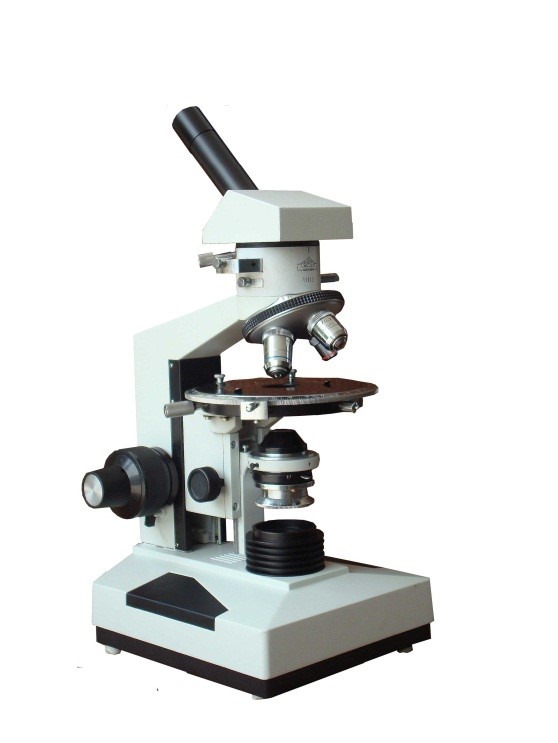

Inclined Monocular Polarising (Petrological) Microscope with coaxial Coarse and fine motion 'CENSICO' make model POL-MN-O-CXI

  1. An inclined monocular microscope for visualising objects in transmitted polarised light, used for petrographic, crystallographic, geological and mineralogical studies.
  2. Coaxial coarse and fine focusing adjustment effected from both sides.
  3. Ball-bearing type self-centered quadruple revolving nosepiece.
  4. Circular centering rotatable stage with degree calibration.
  5. Two-lens aplanatic Abbe condenser.
  6. Rotatable polariser mount having 15° calibration.
  7. Analyser provided in a slide which can be swung in and out of the microscope tube.
  8. The polarising filters are imported and of high grade and are guaranteed for five years for good performance.
  9. The microscope is also equipped with a Bertrand lens, which can be swung in and out.
  10. Microscope has a built-in Halogen Lamp (6V–20W) illuminator in the base.
  11. OPTICS: Three strain-free, Self-centered objectives 5x, 10x & 40x, one Widefield WF 10x eyepiece with cross-hair scale, one WF 15x eyepiece, and an inclined monocular tube.

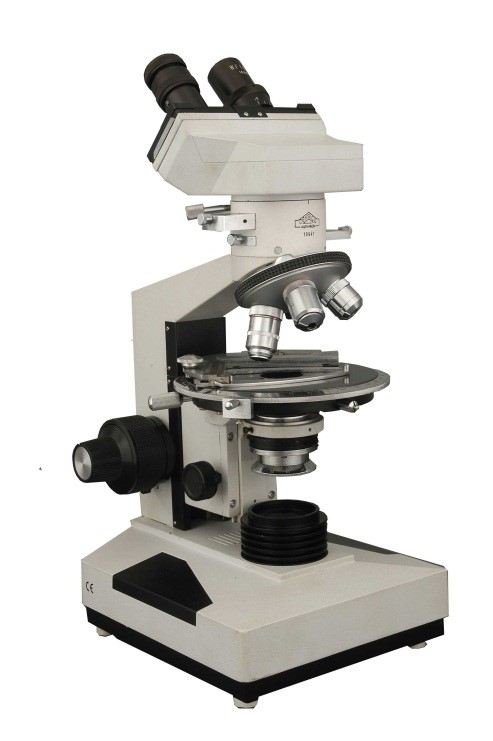

Binocular Polarising (Petrological) Microscope

Binocular Polarising Microscope

Binocular Polarising (Petrological) Microscope for Transmitted Light with Coaxial Coarse & Fine Motion
'CENSICO' Make – Model POL-BN-O-CXL

  1. A binocular microscope for visualising objects (thin sections) in transmitted polarised light, used for petrographic, crystallographic, geological and mineralogical studies.
  2. Coaxial coarse and fine focusing adjustment effected from both sides.
  3. Ball-bearing type self-centered quadruple revolving nosepiece.
  4. Circular centering rotatable stage with degree calibration.
  5. Two-lens aplanatic Abbe condenser with rotatable polariser mount having 15° calibration.
  6. Analyser provided in a slide which can be swung in and out.
  7. Imported high-grade polarising filters guaranteed for five years of good performance.
  8. Bertrand lens which can be swung in and out.
  9. Built-in Halogen Lamp illuminator (6V, 20W) in the base with collector lens.
  10. Optics: Three strain-free, Self-centered objectives (5x, 10x & 40x) and two paired eyepieces: one pair of Widefield WF 10x eyepieces (including one cross-hair scale eyepiece) and one pair of Widefield WF 15x eyepieces.
  11. The microscope is provided with a depolarizer for elimination of pseudo-pleochroism colours.

Binocular Polarising (Petrological) Microscope for Transmitted Light with Coaxial Coarse & Fine Motion
'CENSICO' Make – Model POL-BN-O-CXL-CN (With Centerable Nosepiece)

  1. A binocular microscope for visualising objects (thin sections) in transmitted polarised light, used for petrographic, crystallographic, geological and mineralogical studies.
  2. Coaxial coarse and fine focusing adjustment effected from both sides.
  3. Ball-bearing type centerable quadruple revolving nosepiece provided with centering screws and spanners.
  4. Circular centering rotatable stage with degree calibration.
  5. Two-lens aplanatic Abbe condenser with rotatable polariser mount having 15° calibration.
  6. Analyser provided in a slide which can be swung in and out.
  7. Imported high-grade polarising filters guaranteed for five years of good performance.
  8. Bertrand lens which can be swung in and out.
  9. Built-in Halogen Lamp illuminator (6V, 20W) in the base with collector lens.
  10. Optics: Three strain-free centerable objectives (5x, 10x & 40x) and two paired eyepieces: one pair of Widefield WF 10x eyepieces (including one cross-hair scale eyepiece) and one pair of Widefield WF 15x eyepieces.
  11. The microscope is provided with a depolarizer for elimination of pseudo-pleochroism colours.
Binocular Polarising Microscope

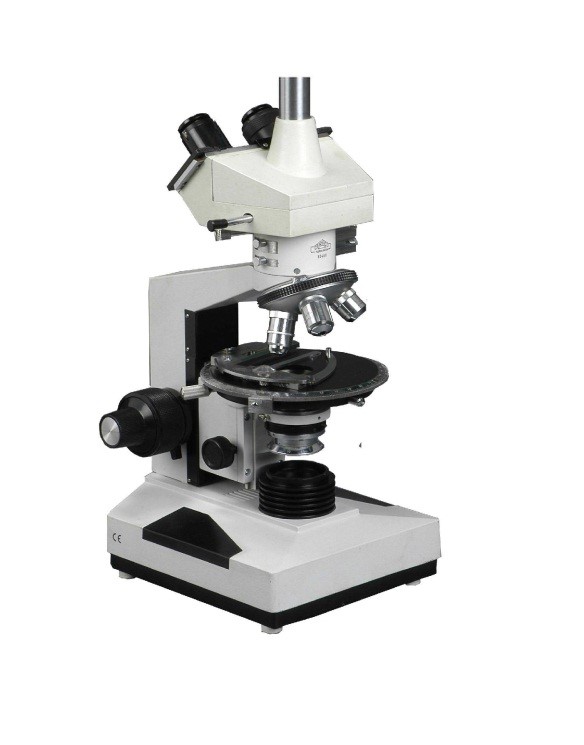

Trinocular Polarising (Petrological) Microscope

Trinocular Polarising Microscope

Trinocular Polarising (Petrological) Microscope for Transmitted Light with Coaxial Coarse & Fine Motion
'CENSICO' Make – Model POL-TN-O-CXL

  1. Trinocular microscope for visualising objects (thin sections) in transmitted polarised light, used for petrographic, crystallographic, geological and mineralogical studies.
  2. Coaxial coarse and fine focusing adjustment effected from both sides.
  3. Ball-bearing type self-centered quadruple revolving nosepiece.
  4. Circular centering rotatable stage with degree calibration.
  5. Two-lens aplanatic Abbe condenser with rotatable polariser mount having 15° calibration.
  6. Analyser provided in a slide which can be swung in and out.
  7. Imported high-grade polarising filters guaranteed for five years of good performance.
  8. Bertrand lens which can be swung in and out.
  9. Built-in Halogen Lamp illuminator (6V, 20W) in the base with collector lens.
  10. Optics: Three strain-free, Self-centered objectives (5x, 10x & 40x) and two paired eyepieces: one pair of Widefield WF 10x eyepieces (including one cross-hair scale eyepiece) and one pair of Widefield WF 15x eyepieces.
  11. The microscope is provided with a depolarizer for elimination of pseudo-pleochroism colours.

Trinocular Polarising (Petrological) Microscope for Transmitted Light with Coaxial Coarse & Fine Motion
'CENSICO' Make – Model POL-TN-O-CXL-CN

  1. Trinocular microscope for visualising objects (thin sections) in transmitted polarised light, used for petrographic, crystallographic, geological and mineralogical studies.
  2. Coaxial coarse and fine focusing adjustment effected from both sides.
  3. Ball-bearing type centerable quadruple revolving nosepiece provided with centering screws and spanners.
  4. Circular centering rotatable stage with degree calibration.
  5. Two-lens aplanatic Abbe condenser with rotatable polariser mount having 15° calibration.
  6. Analyser provided in a slide which can be swung in and out.
  7. Imported high-grade polarising filters guaranteed for five years of good performance.
  8. Bertrand lens which can be swung in and out.
  9. Built-in Halogen Lamp illuminator (6V, 20W) in the base with collector lens.
  10. Optics: Three strain-free centerable objectives (5x, 10x & 40x) and two paired eyepieces: one pair of Widefield WF 10x eyepieces (including one cross-hair scale eyepiece) and one pair of Widefield WF 15x eyepieces.
  11. The microscope is provided with a depolarizer for elimination of pseudo-pleochroism colours.
Trinocular Polarising Microscope

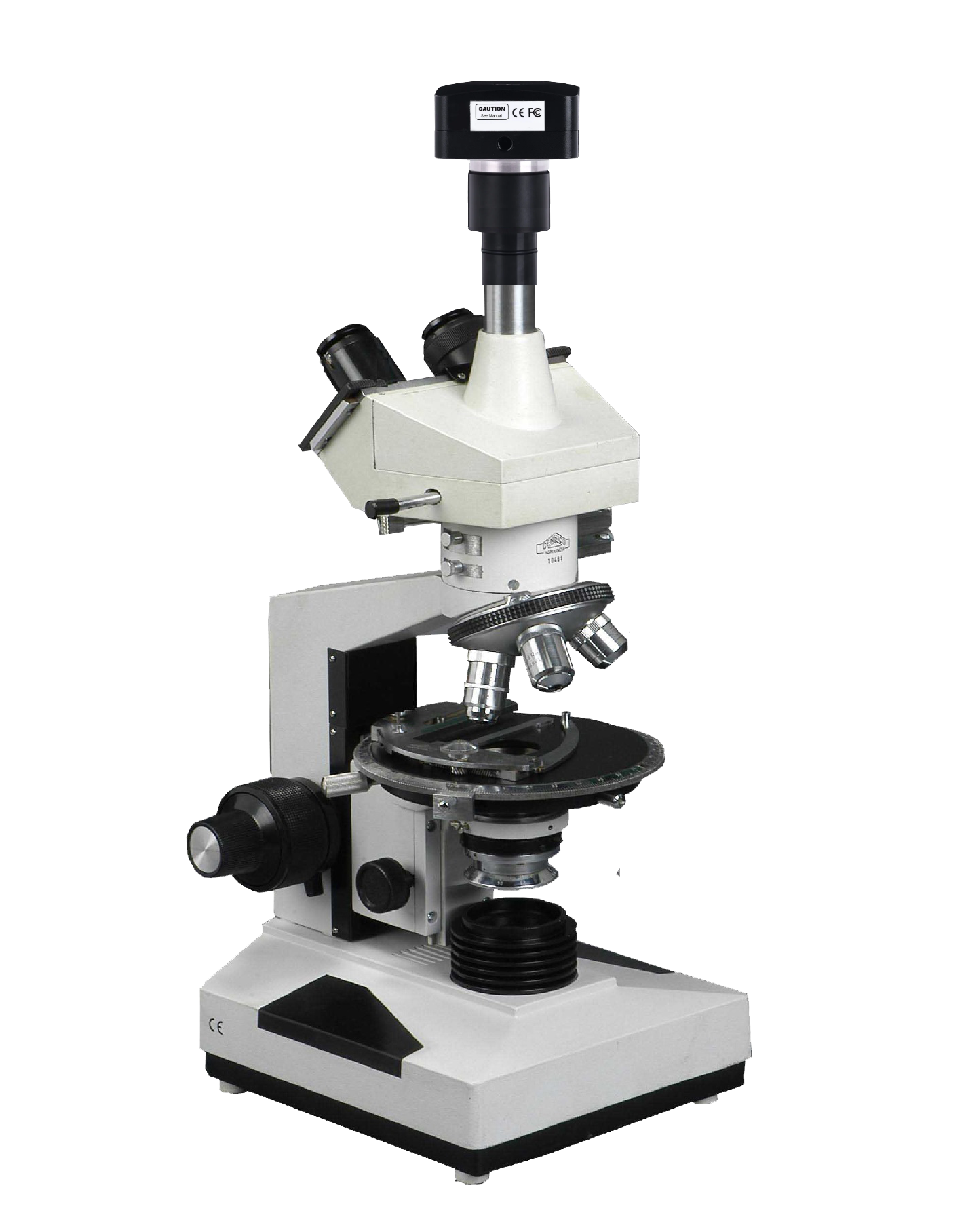

Petrological Microscope Trinocular Polarising Microscope with Digital Camera

```
Trinocular Polarising Petrological Microscope with Digital Camera

Trinocular Polarising (Petrological) Microscope for Transmitted Light with Coaxial Coarse & Fine Motion
'CENSICO' Make – Model POL-TN-O-CXL-DCAM

  1. Trinocular microscope for visualising objects (thin sections) in transmitted polarised light, used for petrographic, crystallographic, geological and mineralogical studies.
  2. Coaxial coarse and fine focusing adjustment effected from both sides.
  3. Ball-bearing type self-centered quadruple revolving nosepiece.
  4. Circular centering rotatable stage with degree calibration.
  5. Two-lens aplanatic Abbe condenser with rotatable polariser mount having 15° calibration.
  6. Analyser provided in a slide which can be swung in and out.
  7. Imported high-grade polarising filters guaranteed for five years of good performance.
  8. Bertrand lens which can be swung in and out.
  9. Built-in Halogen Lamp illuminator (6V, 20W) in the base with collector lens.
  10. Optics: Three strain-free, Self-centered objectives (5x, 10x & 40x), one pair WF 10x eyepieces (including one cross-hair scale eyepiece) and one pair WF 15x eyepieces.
  11. Depolarizer provided for elimination of pseudo-pleochroism colours.
  12. Digital Camera: 5MP / 18MP USB 2.0 / USB 3.0 Digital Camera with reduction lens.

Trinocular Polarising (Petrological) Microscope for Transmitted Light with Coaxial Coarse & Fine Motion
'CENSICO' Make – Model POL-TN-O-CXL-CN-DCAM

  1. Trinocular microscope for visualising objects (thin sections) in transmitted polarised light, used for petrographic, crystallographic, geological and mineralogical studies.
  2. Coaxial coarse and fine focusing adjustment effected from both sides.
  3. Ball-bearing type centerable quadruple revolving nosepiece provided with centering screws and spanners.
  4. Circular centering rotatable stage with degree calibration.
  5. Two-lens aplanatic Abbe condenser with rotatable polariser mount having 15° calibration.
  6. Analyser provided in a slide which can be swung in and out.
  7. Imported high-grade polarising filters guaranteed for five years of good performance.
  8. Bertrand lens which can be swung in and out.
  9. Built-in Halogen Lamp illuminator (6V, 20W) in the base with collector lens.
  10. Optics: Three strain-free centerable objectives (5x, 10x & 40x), one pair WF 10x eyepieces (including one cross-hair scale eyepiece) and one pair WF 15x eyepieces.
  11. Depolarizer provided for elimination of pseudo-pleochroism colours.
  12. Digital Camera: 5MP / 18MP USB 2.0 / USB 3.0 Digital Camera with reduction lens.
Trinocular Polarising Petrological Microscope with Centerable Nosepiece and Digital Camera

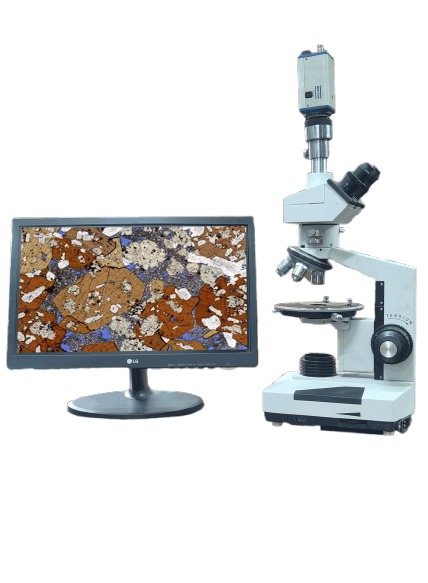

CCTV Projection Microscope for class room demo

Trinocular Polarising Petrological Microscope with CCD Colour Camera and 32 Inch Monitor

Trinocular Polarising (Petrological) Microscope for Transmitted Light with Coaxial Coarse & Fine Motion
'CENSICO' Make – Model POL-TN-O-CXL with CCD Colour Camera & 32 Inch Monitor

  1. Trinocular microscope for visualising objects (thin sections) in transmitted polarised light, used for petrographic, crystallographic, geological and mineralogical studies.
  2. Coaxial coarse and fine focusing adjustment effected from both sides.
  3. Ball-bearing type self-centered quadruple revolving nosepiece.
  4. Circular centering rotatable stage with degree calibration.
  5. Two-lens aplanatic Abbe condenser with rotatable polariser mount having 15° calibration.
  6. Analyser provided in a slide which can be swung in and out.
  7. Imported high-grade polarising filters guaranteed for five years of good performance.
  8. Bertrand lens which can be swung in and out.
  9. Built-in Halogen Lamp illuminator (6V, 20W) in the base with collector lens.
  10. Optics: Three strain-free, Self-centered objectives (5x, 10x & 40x), one pair of Widefield WF 10x eyepieces (including one cross-hair scale eyepiece) and one pair of Widefield WF 15x eyepieces.
  11. Depolarizer provided for elimination of pseudo-pleochroism colours.
  12. CCD Colour Camera: Mintron Taiwan make CCD colour camera.
  13. Display: 32-inch colour monitor.

Accessories for Polarising Microscope

Polarising Microscope Accessories & Spare Parts

Model Specification
Compensators Mica Quarter Wave and Gypsum Red First Order Plates, imported make, mounted in CENSICO metallic mounts.
Quartz Wedge First to Fourth Order imported quartz wedge, mounted in CENSICO metallic mounts, size 12 mm × 4 mm.
Objectives
  1. 5x centerable objective for Polarising Microscopes, CENSICO make.
  2. 10x centerable objective for Polarising Microscopes, CENSICO make.
  3. 40x centerable objective for Polarising Microscopes, CENSICO make.
  4. 100x Oil Immersion Objective, Hertel & Reuss, German make.
Bulbs
  1. Imported Halogen Lamp – 6V / 20W.
  2. Imported Halogen Lamp – 12V / 50W.
  3. Imported Halogen Lamp – 6V / 20W.
  4. Japanese Hosobuchi Make Bulb – 6V × 30/33W, two-pin type with ribbon filament.
Eyepieces
  1. One pair imported Widefield Eyepieces WF10x.
  2. One pair imported Widefield Eyepieces WF15x.
  3. Measuring Eyepiece 10x (Filar Micrometer Eyepiece), imported.
Stage & Eyepiece Micrometer
  1. Stage Micrometer 1 mm × 100 parts, Japan make.
  2. Micrometer Disc Scale 10 mm × 100 parts.
  3. Graph Micrometer Disc, Japan make (100 or 400 square divisions).
Mechanical Stage for Polarising Microscopes Mechanical Stage for CENSICO Make Polarising Binocular and Trinocular Microscopes.

Polarizing Microscope

Polarizing Microscope is a specialized optical instrument used for the analysis of anisotropic and birefringent materials under polarized light. These microscopes are widely used in geology, mineralogy, petrography, metallurgy, material science, forensic laboratories, pharmaceutical industries, and research institutions for advanced scientific analysis. As a leading manufacturer and exporter of Polarizing Microscopes, we offer high-performance instruments designed for accurate observation, crystal analysis, and material identification applications.

Our Polarizing Microscopes are manufactured using premium-quality optical and mechanical components to ensure superior image clarity, durability, and reliable performance. The microscopes are equipped with high-resolution strain-free objectives, wide-field eyepieces, rotating stages, precision focusing systems, and advanced LED or halogen illumination for clear and uniform viewing. The integrated polarizer and analyzer help examine minerals, crystals, fibers, and transparent materials with high precision.

These microscopes are extensively used for petrographic studies, mineral identification, stress analysis, and industrial quality control applications. Available in monocular, binocular, and trinocular models, the instruments can also be integrated with microscope cameras and image analysis software for digital imaging and documentation.

Being a trusted exporter of scientific microscopes and laboratory instruments, we provide customized solutions, robust quality standards, competitive pricing, and reliable after-sales support for domestic and international customers.
