SINGLE DISC PORTABLE POLISHER FOR METALLOGRAPHIC SAMPLES VARIABLE SPEED 'CENSICO' MAKE MODEL PMV-P8-I

1. Single disc portable variable speed polisher designed for grinding and polishing metallographic specimens.
2. Suitable for handling most types of metallurgical specimens with precision and ease.
3. Equipped with a motor-driven 8-inch bronze disc. The disc is easily replaceable, and a variety of discs are available for different polishing and grinding applications.
4. Supplied with an 8-inch bronze disc that push-fits onto a tapered steel spindle running smoothly on two precision ball bearings housed within the unit.
5. The polishing disc operates within a durable fiberglass sink that collects abrasive waste and efficiently removes it from the working area.
6. Fitted with a splash guard and protective covers to ensure safe operation and protect the equipment when not in use.
7. Provided with a swan-neck water tap that can be positioned over the polishing disc for controlled water supply during grinding and polishing, or swung toward the wash basin for cleaning specimens during intermediate examinations.
8. All operating controls are conveniently located on the front panel for easy access and user-friendly operation.
9. Operates on 220V AC power with a 1/4 HP T.E.F.C. single-phase motor providing continuously variable speed from 300 RPM to 900 RPM through a circular speed control wheel.

SINGLE DISC GRINDER FOR ROCK & MINERALS SAMPLES, VARIABLE SPEED PORTABLE TYPE
'CENSICO' Make – Model GMV-12-I

1. Variable speed portable grinder suitable for handling most types of metallurgical, petrological and mineral specimens.
2. Equipped with a motor-driven 12" mild steel / cast iron grinding disc.
3. Supplied with a 12" mild steel / cast iron disc, push-fitted on a tapered steel spindle running smoothly on two precision ball bearings.
4. Grinding disc operates inside a fiberglass sink that collects abrasive waste and drains it away efficiently.
5. Disc is fitted with a splash guard and protective cover when not in use.
6. Provided with a swan-neck water tap that can be positioned over the disc for controlled water flow during grinding and polishing, or swung towards the wash basin for cleaning.
7. Compact portable design with easy access to the mechanism and all operating controls conveniently located on the front panel.
8. Operates on 220V AC with a 1 HP TEFC single-phase motor offering continuously variable speed from 300 RPM to 900 RPM through a circular control wheel.

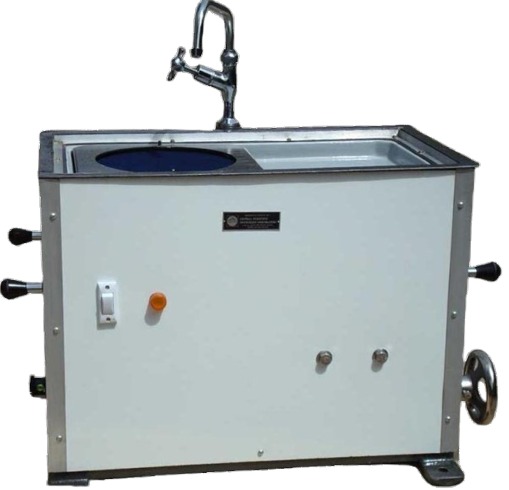

SINGLE DISC GRINDER FOR ROCK & MINERALS SAMPLES, VARIABLE SPEED PORTABLE TYPE
'CENSICO' Make – Model GMV-10-I

1. Variable speed portable grinder suitable for handling most types of metallurgical, petrological and mineral specimens.
2. Equipped with a motor-driven 10" mild steel / cast iron grinding disc.
3. Supplied with a 10" mild steel / cast iron disc, push-fitted on a tapered steel spindle running smoothly on two precision ball bearings.
4. Grinding disc operates inside a fiberglass sink that collects abrasive waste and efficiently drains it away.
5. Disc is fitted with a splash guard and protective cover when not in use.
6. Provided with a swan-neck water tap that can be positioned over the disc for controlled water flow during grinding and polishing, or swung towards the wash basin for cleaning.
7. Compact portable design with easy access to the mechanism and all operating controls conveniently located on the front panel.
8. Operates on 220V AC with a 1/2 HP TEFC single-phase motor offering continuously variable speed from 300 RPM to 900 RPM through a circular control wheel.

SINGLE DISC GRINDER FOR ROCK & MINERALS SAMPLES, VARIABLE SPEED PORTABLE TYPE
'CENSICO' Make – Model GMV-P8-I

1. Variable speed portable grinder suitable for handling most types of metallurgical, petrological and mineral specimens.
2. Equipped with a motor-driven 8" mild steel / cast iron grinding disc.
3. Supplied with an 8" mild steel / cast iron disc, push-fitted on a tapered steel spindle running smoothly on two precision ball bearings.
4. Grinding disc operates inside a fiberglass sink that collects abrasive waste and efficiently drains it away.
5. Disc is fitted with a splash guard and protective cover when not in use.
6. Provided with a swan-neck water tap that can be positioned over the disc for controlled water flow during grinding and polishing, or swung towards the wash basin for cleaning.
7. Compact portable design with easy access to the mechanism and all operating controls conveniently located on the front panel.
8. Operates on 220V AC with a 1/4 HP TEFC single-phase motor offering continuously variable speed from 300 RPM to 900 RPM through a circular control wheel.

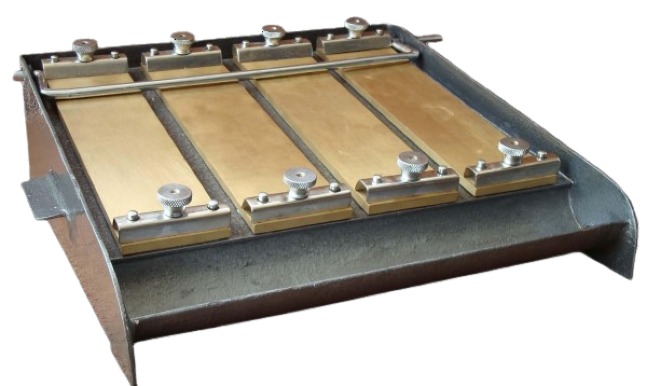

HAND GRINDER FOR PETROGRAPHY
'CENSICO' Make – Model HG-I

The CENSICO Hand Grinder for Petrography (Model HG-I) is specially designed for the manual grinding and polishing of petrographic specimens. It accommodates four pieces of 11" × 3" (one-third sheet) emery paper of different grit sizes, securely clamped onto a polished bronze/brass surface to provide a flat and stable grinding platform. The complete mechanism is mounted in a heavy-duty tray measuring approximately 16" × 16.5", fabricated from heavy gauge sheet metal with a durable hammer-tone enamel finish. The unit is equipped with an integrated water jet and control valve, allowing controlled water flow for efficient wet grinding and polishing operations.

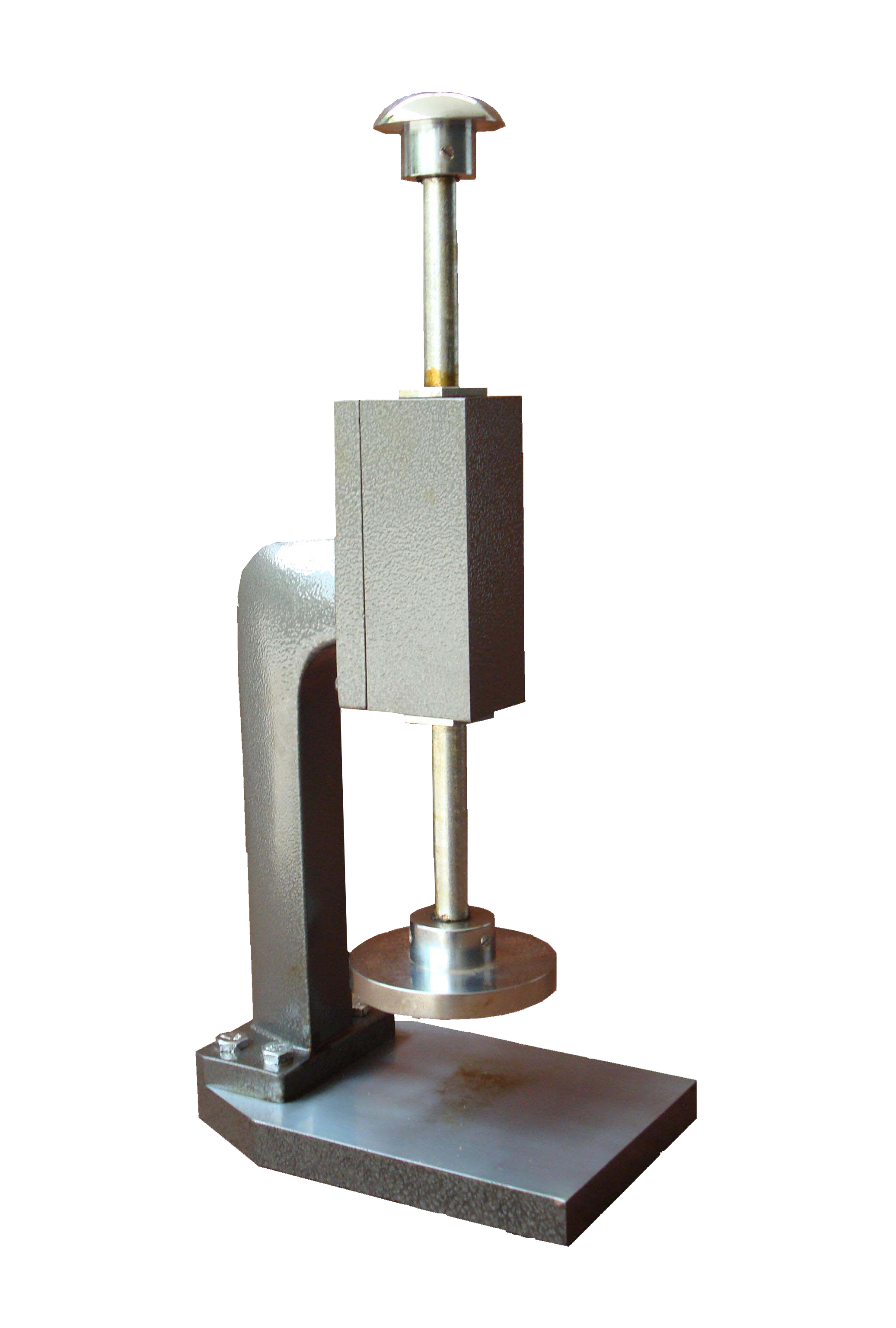

SPECIMEN LEVELLER FOR PETROGRAPHIC SAMPLES 'CENSICO' MAKE MODEL SL-I

The Specimen Leveller for Petrographic Samples provides a simple and reliable method for ensuring that the specimen surface is exactly perpendicular to the optical axis of the microscope. Pressure applied to the plunger knob aligns the polished specimen surface parallel to the upper surface of the microscope slide, on which the specimen is mounted using plasticine. The unit consists of a ground metallic plated base, a concealed return spring steel shaft with a gun metal bushing, and a one-piece cast iron (C.I.) frame finished with a durable hammertone coating for long-lasting performance and corrosion resistance.
