CENSICO Premium Microscopes & Metallographic Testing Equipments
Die Inspection Microscope

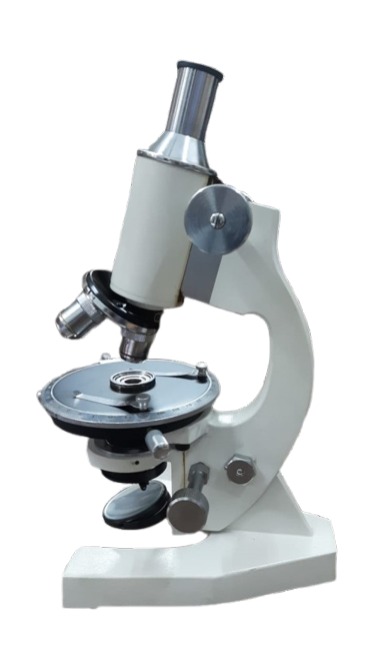

15 degree Inclined Microscope
MICROSCOPE FOR INSPECTION OF DIAMOND DIES
15° Inclined Microscope – 'CENSICO' Make, Model DDM-15 DEGREE
The CENSICO 15° Inclined Microscope (Model DDM-15 DEGREE) is specially designed for the inspection of diamond dies. It features a 15° inclined viewing head and is equipped with Indian-made 5X and modified 10X objectives, along with 5X and 10X eyepieces, providing clear and precise observation for diamond die inspection applications.
Stereoscopic Microscope

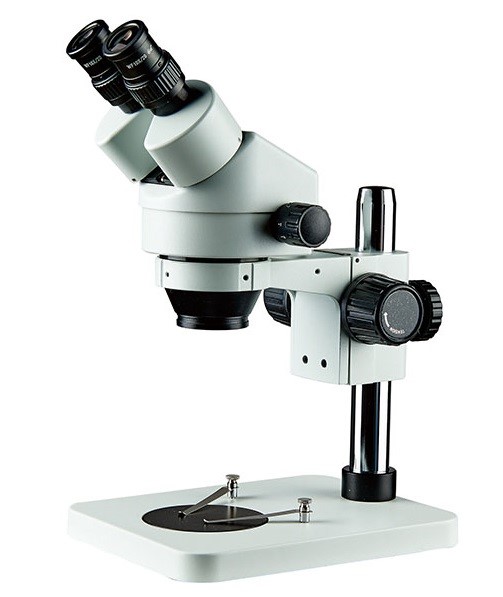

STEREOSCOPIC ZOOM BINOCULAR MICROSCOPE / DIAMOND DIE INSPECTION MICROSCOPE
Model SZM-B (With Imported Components)
- A stereo zoom binocular microscope.
- Total magnification: 7X–45X (Standard Twin Zooming).
- Objective: 0.7X–4.5X (Zoom Ratio 1:6.5).
- One pair of high eyepoint Widefield WF10X/20 eyepieces, including one eyepiece with cross-scale graticule.
- Working distance: 100 mm.
- Imported pillar base stand.

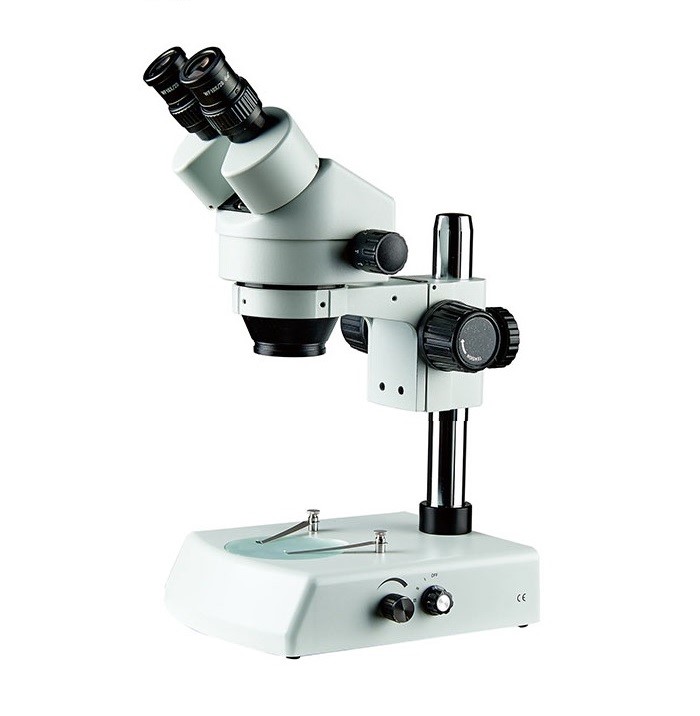

STEREOSCOPIC ZOOM BINOCULAR MICROSCOPE
'CENSICO' Make – Model SZM-B-LED (With Imported Components)
- A stereo zoom binocular microscope.
- Total magnification: 7X–45X (Standard Twin Zooming).
- Objective: 0.7X–4.5X (Zoom Ratio 1:6.5).
- One pair of high eyepoint Widefield WF10X/20 eyepieces.
- Working distance: 100 mm.
- Magnification: 7X–45X.
- Optical system: Imported stereo zoom optical system with 0.7X–4.5X zoom objectives, completely parfocal.
- Eyepieces: Imported paired Widefield WF10X/20.
- Illumination system: LED transmitted light integrated into the stand with ON/OFF switch.
Sterezoom Microscope
STEREOSCOPIC BINOCULAR MICROSCOPE / DIAMOND DIE INSPECTION MICROSCOPE
Model ST-60 (Imported Head & Eyepieces)
- Magnification: 20X / 40X.
- The microscope is designed with step-change magnification through a revolving nosepiece.
- Equipped with paired 2X / 4X objectives and paired Widefield 10X eyepieces with pillar base stand.
STEREOSCOPIC ZOOM BINOCULAR MICROSCOPE / DIAMOND DIE INSPECTION MICROSCOPE
Model SZM-B (With Imported Components)
- Stereo zoom binocular microscope.
- Total magnification: 7X–45X (Standard Twin Zooming).
- Objective: 0.7X–4.5X (Zoom Ratio 1:6.5).
- One pair of high eyepoint Widefield WF10X/20 eyepieces, including one eyepiece with cross-scale graticule.
- Working distance: 100 mm.
- Imported pillar base stand.
STEREOSCOPIC ZOOM BINOCULAR MICROSCOPE
'CENSICO' Make – Model SZM-B-LED (With Imported Components)
- Stereo zoom binocular microscope.
- Total magnification: 7X–45X (Standard Twin Zooming).
- Objective: 0.7X–4.5X (Zoom Ratio 1:6.5).
- One pair of high eyepoint Widefield WF10X/20 eyepieces.
- Working distance: 100 mm.
- Magnification: 7X–45X.
- Optical System: Imported stereo zoom optical system with 0.7X–4.5X zoom objectives, completely parfocal.
- Eyepieces: Imported paired Widefield WF10X/20.
- Illumination System: LED transmitted light integrated into the stand with ON/OFF switch.
Die Inspection Microscopes
We are a trusted manufacturer and exporter of premium quality Die Inspection Microscopes designed for accurate inspection and analysis of semiconductor dies, electronic components, and precision industrial parts. Manufactured using advanced optical technology and high-quality materials, these microscopes provide sharp imaging, excellent magnification, and reliable performance. Widely used in electronics industries, semiconductor manufacturing, research laboratories, and quality control departments, they help detect defects, cracks, alignment issues, and surface irregularities with precision. Our Die Inspection Microscopes are appreciated for durable construction, ergonomic design, and easy operation. As a reliable exporter, we ensure international quality standards, timely delivery, competitive pricing, and complete customer satisfaction worldwide.
